| Installation
Procedure: |
| |
| 1.)
Drill clearance holes (13mm - 16mm diameter depending upon material and
length of tie to be used) to specify depth and at required vertical spacing. |
| |
2.)
Blow out holes and thoroughly flush with water.
|
| |
3.)
With the aid of a resin gun, pump RESIN to outlet of nozzle. Insert the
nozzle to full depth of drilled hole and pump resin to fill hole. Maintain
pressure on gun while retrieving nozzle to ensure that all voids are filled
with resin. |
| |
| 4.)

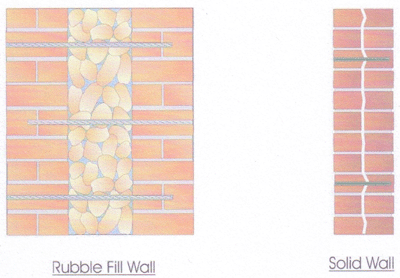

Wind the correct length of RESIN BAR into the hole using Drive-Fix support
tool. Make good all holes at the surface with colour matching dyed mortar. |
| |
|
|
| Installation
Notes: |
| |
| Unless
specified otherwise the following criteria are to be used. |
| |
| a.)
RESIN BAR to be installed at the same density as remedial wall ties, 2.47
per square metre using horizontal centres of 900mm and vertical centres
of 450mm with additional RESIN BAR installed either side of openings at
300mm vertical centres. |
| |
